UVP-365




This product is discontinued.







SENSITIVITY CHARACTERISTIC OF SENSOR
FEATURES
This is the standard measurement instrument to measure absolute UV vaiue. All SAN-EI's UV light source fixtures are measured by this meter.
The photo diode is used for UV intensity measurement that excells in high accuracy and repeatability.
A measurement jig for the standard light guide unit that facilitates UV measurements is available as an option.

SPECIFICATIONS
UV MEASUREMENT TYPE UV intensity measurement
(mW/cm²)
MEASURING WAVE LENGTH 365nm
MEASUREMENT RANGE 1019,990mW/cm²(L range)
11999mW/cm²(H range)
MEASUREMENT ACCURACY ±( 5%rdg+1dgt )
LIGHT RECEIVING DIA. 1mm
RATED
INPUT · POWER
CONSUMPTION
006P type 9Vdrybattery·0.018W
WEIGHT apprx.0.3kg
SENSOR ANGULAR SENSITIVITY CHARACTERISCS

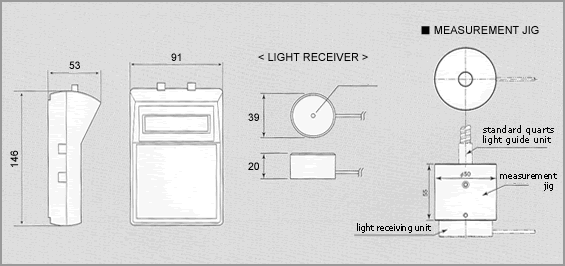

EXTERNAL DIMENSIONS (mm)
