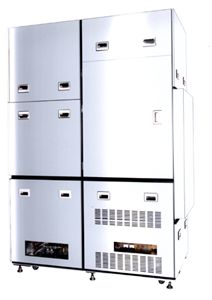

| Exposure Equpment |
 |
UV photo etching type |
|
 |
FEATURES |
|
Our uniform collimated light irradiate equipment is possible for the effective use of UV which is from the ultra high-pressure mercury lamp.
A brand new development of San-Ei, the high efficiency Twin Mirror Unit that can get the UV on any surface of irradiation is used for every product of us. In addition, high efficiency twin mirror unit is used from the standard type to the high precision type. |
 TCC type |
••• |
High efficiency Twin Mirror Unit and our own development of optical unit, such as condenser lens, collimation unit, can get high collimation and uniform UV intensity. |
|
|
|
| TCP type |
••• |
This is made with High efficiency twin mirror unit, Condenser lens, and Mirror unit for wide purpose. It is suitable for the performance test of simplified solar simulator and solar battery and the light resistance test.
|
|
|
|
| TIC type |
••• |
Integrator lens unit and collimation mirror unit that are capable of taking
flatness ±3°(on both sides) and the critical dimension uniformity
of intensity ±5°and high efficiency twin mirror unit are used
for this type. |
| (TCC type and TCP type are available only at San-Ei.) |
|
SPECIFICATIONS |
|
| Unit type |
TCC type |
TCP type |
TIC type |
| Flatness |
Both angles ±5° |
Both angles ±12° |
Both angles ±3° |
| Irradiation uniformity *1 |
±10% |
±15% |
±15% |
| Irradiation area |
 500mm |
*2 |
UEP-20
(2000WLamp) |
about 20mw/cm² |
about 18mw/cm² |
about 18mw/cm² |
UEP-35
(3500WLamp) |
about 35mw/cm² |
about 28mw/cm² |
about 28mw/cm² |
UEP-50
(5000WLamp) |
about 45mw/cm² |
about 38mw/cm² |
about 38mw/cm² |
 |
High efficiency twin mirror |
 |
|
|
| Condenser lens |
|
|
 |
| Integrator lens |
|
|
|
| Collimation mirror |
|
|
|
| Flat mirror |
|
|
|
|
*1 This is the distribution rate for irradiation area 500.
*2 This is the number for wave length 365nm at the beginning. |
|
UV resin coating type |
| Type |
EP-2000 |
EP-3500 |
EP-5000 |
| Lamp |
L20001L |
L35001L |
L50001L |
| Lamp power |
2000W |
3500W |
5000W |
| Lamp life *3 |
500h |
400h |
600h |
| Lamp voltage |
DC37V |
DC62V |
DC60V |
| Lamp Current |
DC54A |
DC56A |
DC83A |
| Power supply |
HB-2000 |
HB-3500 |
HB-5000 |
| Input Power |
AC200V 50/50Hz |
AC200V50/50Hz |
AC200V50/50Hz |
| Power consumption |
2500W |
4000W |
5500W |
| Light source Size |
1620(W)~1440(H)~700(D) mm |
| Weight |
about 800kg |
|
