FEATURES |
|
|
|
 |
These are the light guide units exclusively
used for the SUPER CURE SERIES.
Pure quartz fiber strands that efficiently
transmit UV light are used. These quartz
fibers excell in flexibility and durability. |
|
|
|
In addition to standard units, special contour
fibers, such as lined, ringed, square shapes,
etc. are possible. Also multi-branch type
fibers are available on custom orders. |
|
|
|
|
|
|
STANDARD LIGHT GUIDE UNIT SPECIFICATIONS |
|
|
|
| MODEL |
NO.OF BRANCH |
LIGHT EMIT DIA.(mm) |
OVERALL LENGTH(mm) |
5 -1B-1000L |
1 |
5 |
1 |
| 5-2B-1000L |
2 |
5 |
1 |
| 5-4B-1000L |
4 |
5 |
1 |
| 3.5-1B-1000L |
1 |
3.5 |
1 |
| 3.5-2B-1000L |
2 |
3.5 |
1 |
| 3.5-4B-1000L |
4 |
3.5 |
1 |
| 5-1B-1000LS *1 |
1 |
5 |
1 |
| 5-1B-2000LS *1 |
2 |
5 |
1 |
|
|
|
|
|
|
*1 Light guide unit with quartz sensor fiber.
Applcable models:UVF-205S·UVM-200·UVM-350 |
|
|
|
|
|
|

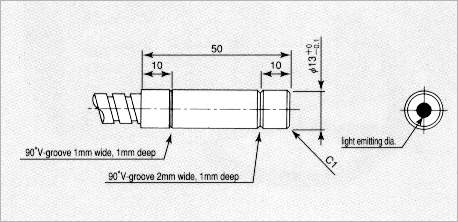

STANDARD LIGHT GUIDE UNIT DIMENSIONS |
|
|
|
 |
|
|
|
|

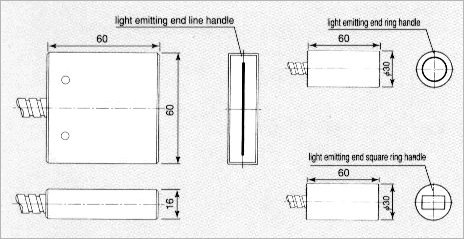

SPECIAL CONTOUR LIGHT GUIDE UNIT DIMENSIONS |
|
|
|
 |
|
|
|

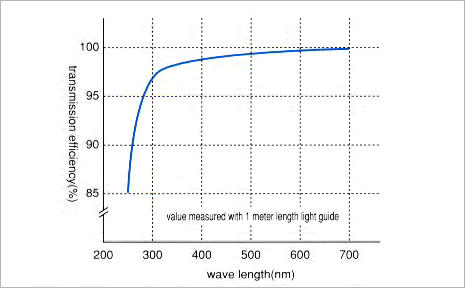

| TRANSMISSION CHARACTERISTICS OF LIGHT GUIDE |
|
 |
|
|
|
