LIGHT COLLECTING LENSES





FEATURES
By receiving emitted light from the lamp directly to the lens, uniform irradiation of a wider area is possible (more than 20mm)that cannot be done by the light guide unit alone.
Highly eifficient light collecting type, standard light collecting type and uniform irradiation type are available.

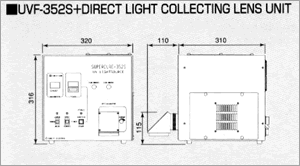

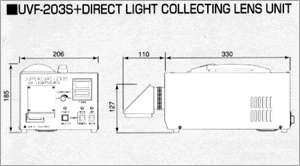

DIMENSIONS
STANDARD UNIT SPECIFICATIONS
MODEL TYPE LENS COMPOSITION
STC-1 STANDARD LIGHT COLLECTING TYPE CONCAVE LENS ×1
STC-2 HIGH EFFICIENCY LIGHT COLLECTING TYPE CONCAVE LENS ×2
STU UNIFORM IRRADIATION TYPE FLIER EYE LENS 16 PCS
