FEATURES
Full I-V parameters measurement with Dark I-V curve
2-Wire and 4-Wire test method
2-Wire and 4-Wire test method
Automatically or Manually export test report
Auto/Manual Shutter control (controlling Solar Simulator with software)
Compatible 32 bit Windows XP&7 System

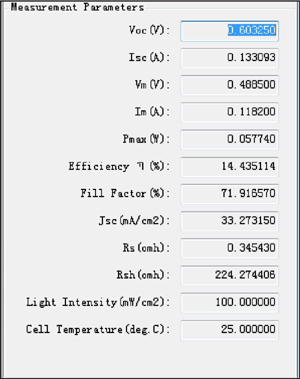

Measurement Parameters

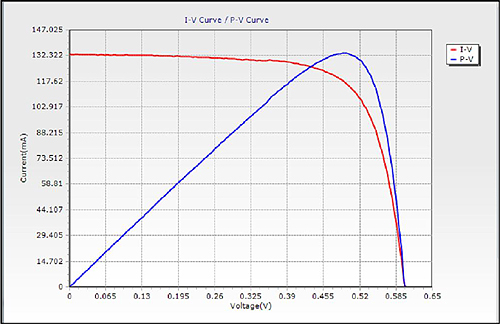

Compete I-V and P-V Curve
Short Circuit Current (Isc)
Open Circuit Voltage (Voc)
Voltage of Maximum Watt (Vm)
Current of Maximum Watt (Im)
Maximum Watt (Pmax)
Conversion Efficiency(η)
Current density (Jsc)
Series Resistance (Rs)
Parallel Resistance (Rsh)








We present several types probe terminal and stage with temp controller. All of our products can be
designed to fit customer’s needs.


Probe Stage HW-12

Four probes with gold coating.
Four probe holders, 3D adjustable.
Copper plate with gold coating or black
  Aluminum plate.
Plate Size: 120mm × 120mm 〜 300mm × 300mm
 (other size is customizable)
Vacuum suction available



Thermal Stage HW-1616 (for heating only)

Temperature setting range: RT ~ 85℃
Temp control Accuracy: ±1℃
Temp Measurement Accuracy: ±0.1℃
Temp control element: Electrical resistance.
Temp control method: PID Control with Pt100
  Temp Sensor.
Copper Plate with Au Coating or black
    Aluminum plate.
Plate Size: 120mm × 120mm ~ 300mm × 300mm
  (other size is customizable)
Vacuum suction available.




Thermal Stage with Temperature Controller: HW-1618

Temperature setting range: 15℃ to 65℃
  (Ambient Temp 25).
Temp control Accuracy: ±1℃
Temp Measurement Accuracy: ±0.1℃
Temp control method: PID Control with Pt100
    Temp Sensor.
Temp control element: Thermoelectric
    Peltier Component.
Copper Plate with Au Coating or black
   Aluminum plate.
Plate Size: 120mm × 120mm ~ 300mm × 300mm
   (other size is customized)
Vacuum suction available.



OPV Kits OPV-12
Can be designed for irradiation from above or downward.
Jig & Holder can be customized as per customer’s substrate design.
High reproducibility of test result can help research improve job efficiency.










For standard researching needs (c-Si), we commend a Mono-Si PV Reference Cell: AK-200.
This Reference PV Cell is the result of collaborative research between Konica Minolta and Japan’s
National Institute of Advanced Industrial Science and Technology (AIST).
There are also deferent types for DSSC, Mulit-junction or a-Si/μ-Si researching.




Main specifications

Model AK-200
Short-circuit current Isc (at 25℃ ±1℃ ) 100mA or higher
Receptor area 20mm × 20mm
Aperture area 47mm × 47mm
FOV 160°
FF 60% or higher
Temperature sensor PT-100
Connector for I-V measurement XLR-type Cannon plug (JIS, IEC, ASTM standard)
Connector for temperature measurement LEMO connector (WPVS standard)
Operating temperature/humidity range 20-30℃, relative humidity 65% or less
Storage temperature/humidity range 15-30℃, relative humidity 30-75℃ with no
condensation
Size (W) × (D) × (H) 120 × 90 × 21.5mm
Weight 600g
Standard accessories Storage Case PV-A01, M4 screws (4pcs), Connector
for I-V Measurement (male) PV-A02, Protection
Plate PV-A03
