This solar simulator realized the high spectral match
close to sunlight from adoption of two light sources
which consist of a xenon lamp and a halogen lamp.
In addition to an 8 inches model, a small model irradiated
area □50mm was developed.


FEATURES
Effective irradiance area: 50mm x 50mm
By an innovative optical design(mixing light from Halogen
   Lamp and Xenon Lamp),the spectral mismacth within }25%
   (JIS C 8904-9 MA class) is possible.
Compact body, easy operation and installation.
100W halogen lamp, 150W xenon lamp (power saving)
AAA class
   Certified JIS JIS C 8904-9 / IEC 60904-9 (2007) / ASTM E927-5
For suppoting customer's demands, spectral range up to
   1800nm can be designed.
Optic-axis adjustment of lamp is very easy!!

Optic-axis adjustment of a lamp becomes easy and the work of adjustment of
the irradiance non-uniformity is reduced,
Because the rear of a lamp house is equipped with the "Xenon lamp arc monitor",





JIS C 8904-9 (Multi-junction j

Item Classification
MA B C
Non-uniformityof Irradiance Less than Less than Less than
±2% ±3% ±10%
Temporal Instabilityof Irradiance Less than Less than Less than
±1% ±3% ±10%
Spectral Mismatch 0.75 - 1.25 0.60 - 1.40 0.40- 2.00

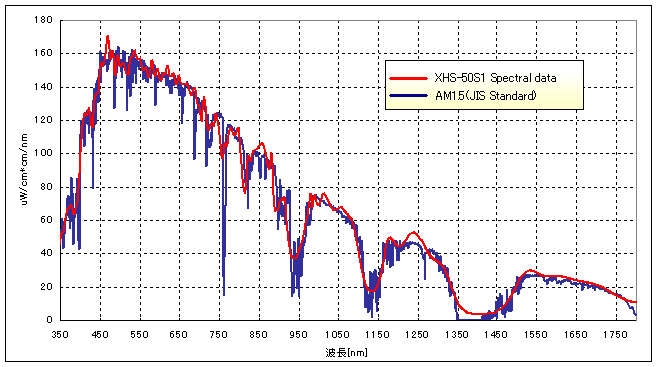

Spectral Distribution of XHS-50S1






JIS C 8904-9 (Multi-junction j 350-1100nm
Wavelength Range (nm) JIS C 8904-9 XHS-50S1 Mismatch Specification
350`400 4.09 4.12 100.73 <}25%
400`450 7.81 7.81 100.00 <}25%
450`500 9.84 9.81 99.70 <}25%
500`550 9.66 9.64 99.79 <}25%
550`600 9.44 9.37 99.26 <}25%
600`650 9.11 9.17 100.66 <}25%
650`700 8.50 8.62 101.41 <}25%
700`750 7.59 7.56 99.60 <}25%
750`800 6.72 6.82 101.49 <}25%
800`850 6.16 5.99 97.24 <}25%
850`900 5.79 5.61 96.89 <}25%
900`950 3.37 3.34 99.11 <}25%
950`1000 3.75 3.91 104.27 <}25%
1000`1050 4.39 4.39 100.00 <}25%
1050`1100 3.78 3.82 101.06 <}25%
*Typical data.
