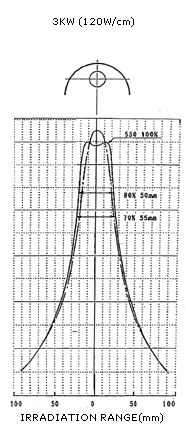

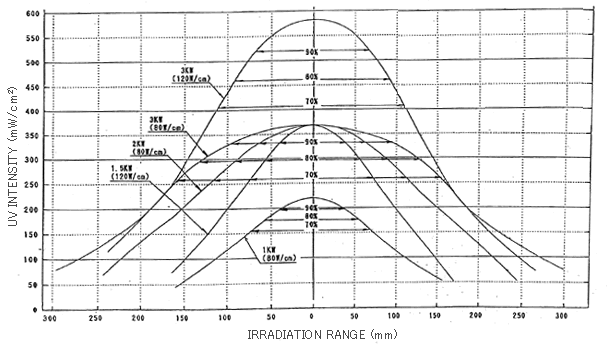

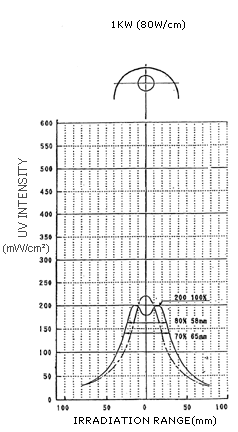

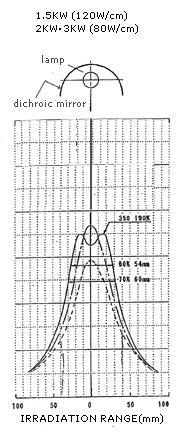

HOME >> Data· Description >> UV Light Source Operation Information DATA OF IRRADIATION DISTANCE·IRRADIATION AREA·UV INTENSITY In case of UVF-352S values on graphs will become approximately 2.5 times. UV LAMP LATERAL DIRECTION STRENGTH DATA (REFERENCE) CONDITIONS LAMP Metal Halide Lamp FIXTURE Dicroic Mirror Light Condensing IRRADIATION  DISTANCE 150 mm CONVEYOR  SPEED 1m/min DATA illuminant L(mm) 125 mm 200 mm 375 mm lamp (80W/cm) (120W/cm) 1KW 1.5KW 2KW 3KW 3KW integrated light volume (mJ/cm²) 2300 1800 3800 3300 6500 5300 9000 7200 9000 7200 max.intensity (mW/cm²) 220 370 370 580 370 over 90% over 80% over 70% (mm) 75 110 140 75 110 140 120 180 220 120 180 220 190 265 310 at irradiation distance=130m UV LAMP VERTICAL DIRECTION STRENGTH DATA (REFERENCE) CONDITIONS LAMP Metal Halide Lamp FIXTURE Dicroic Mirror Light Condensing IRRADIATION  DISTANCE 130 mm CONVEYOR  SPEED 1m/min distanse (mm) peak i ntensity (mW/cm²) integrated light volume (mJ/cm²) 130 200 1100 150 220 1040 distanse (mm) peak intensity (mW/cm²) integrated light volume (mJ/cm²) 130 350 2000 150 370 1900 200 290 1530 distanse (mm) peak intensity (mW/cm²) integrated light volume (mJ/cm²) 130 550 3000 150 580 2850 Copyright (C) SAN-EI ELECTRIC CO.,LTD.
