Visible Lamp Arc Monitor
|
|
|
 |
Introduction |
|
|
We have manufactured the highly accurate solar
simulators, which is used for evaluations where
sunlight needs to be recreated.

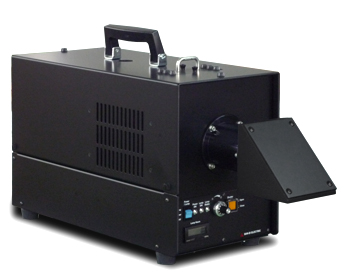

By fully utilizing these technologies, we have
developed this portable Solar Simulator, which
can easily reproduces sunlight.
Our device is optimum solution for initial
evaluations and inspections for the research purpose.
|
|
What's New? |
|
|
 Improved AM filter to match reference solar light from 300nm.
Easy attachment and detachment of AM filter from outside.
2 slots are prepared, band pass filter or dimmer mesh
filter can be added.
|
|
FEATURES |
|
|
Effective irradiance area: 40mm x 40mm
Small body convenient to carry & set up
The lamp of high stability and a long life (an average of
2000 hours)
Wide power input range (100V-240V)
AAA class
Certified JIS 8912 / IEC 60904-9 (2007) / ASTM E927-5
Extensive sales results for research demands
|
|
Applications |
|
|
For inspection / measurement of a solar cell.
For inspection / evaluation of LCD.
For experiment of optical science
For the light resistance test of various material.
|
|
 |
Dimming Mesh Filter (optional item) |
|
|
|
 |
|
 |
|
”Fixing percentage dimming mesh filters:
75%,70% , 60% , 50% ,40% , 30% , 20% , 10%
can be choosed. |
|
|
|
|
|
Bandpass Filter (optional item) |
|
|
|
 |
|
 |
|
| ”We provide dedicated holder for 50mm T2mm filter. |
|
|
|
|
|
Selectable irradiation direction (up, down, left, right) by rotating lens
unit.
|
|
|
|
