Introduction |
|
|
This solar simulator realized the high spectral match
close to sunlight from
adoption of two light sources which consist of a xenon
lamp and a halogen lamp.
|
|
FEATURES |
|
|
 Effective irradiance area: 220mm x 220mm
By an innovative optical design(mixing light from Halogen
Lamp and Xenon Lamp),the spectral mismacth within ±25%
(JIS C 8904-9 MA class) is possible.
750W halogen lamp, 1600W xenon lamp (power saving)
AAA class
Certified JIS C 8904-9 / IEC 60904-9 (2007) / ASTM E927-5
For suppoting customer's demands, spectral range up to
1800nm can be designed.
Supplied to National Institute of Advanced Industrial
Science and Technology (AIST).
|
|
|
|
| Optic-axis adjustment of a lamp is very easy!! |
Optic-axis adjustment of a lamp becomes easy and the work of adjustment of
the irradiance non-uniformity is reduced,
Because the rear of a lamp
house is equipped with the "lamp arc monitor",
|
|
|
|
JIS C 8904-9 (Multi-junction ） |
| Item |
Classification |
| MA |
B |
C |
| Non-uniformityof Irradiance |
Less than |
Less than |
Less than |
| ±2% |
±3% |
±10% |
| Temporal Instabilityof Irradiance |
Less than |
Less than |
Less than |
| ±1% |
±3% |
±10% |
| Spectral Mismatch |
0.75 - 1.25 |
0.60 - 1.40 |
0.40- 2.00 |
|

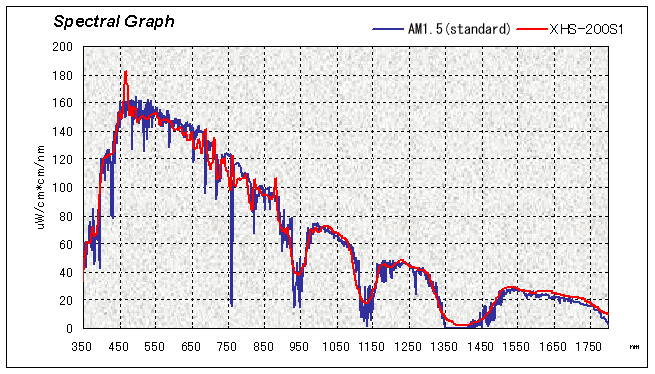

Spectral Distribution of XHS-220S1 |
| ■ JIS C 8904-9 (Multi-junction ） 350-1100nm |
|
JIS C 8904-9 |
XHS-220S1 |
Mismatch |
Specification |
| 350-400 |
4.09 |
4.2% |
103.0% |
<±25% |
| 400-450 |
7.81 |
8.0% |
102.2% |
<±25% |
| 450-500 |
9.84 |
10.1% |
102.8% |
<±25% |
| 500-550 |
9.66 |
9.5% |
98.0% |
<±25% |
| 550-600 |
9.44 |
9.4% |
99.7% |
<±25% |
| 600-650 |
9.11 |
8.8% |
97.1% |
<±25% |
| 650-700 |
8.50 |
8.3% |
97.8% |
<±25% |
| 700-750 |
7.59 |
7.5% |
98.4% |
<±25% |
| 750-800 |
6.72 |
6.8% |
101.5% |
<±25% |
| 800-850 |
6.16 |
6.2% |
99.5% |
<±25% |
| 850-900 |
5.79 |
5.7% |
99.0% |
<±25% |
| 900-950 |
3.37 |
3.5% |
101.8% |
<±25% |
| 950-1000 |
3.75 |
3.7% |
98.4% |
<±25% |
| 1000-1050 |
4.39 |
4.5% |
101.8% |
<±25% |
| 1050-1100 |
3.78 |
3.8% |
100.8% |
<±25% |
